Compatible Spare Parts for the Abode Hargrave

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time

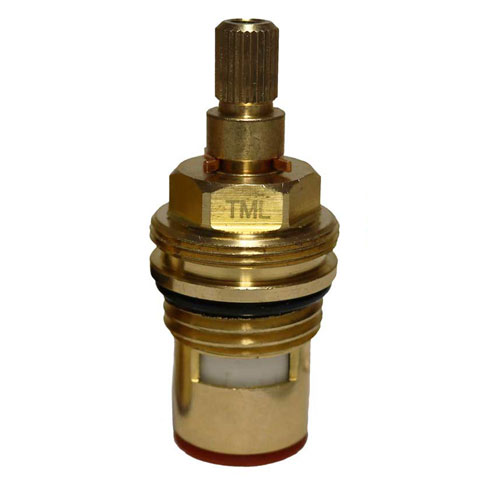

HargraveTA-CRClockwise (to open) red1/2" Cartridge x 28 x 54mm£10.99 Today

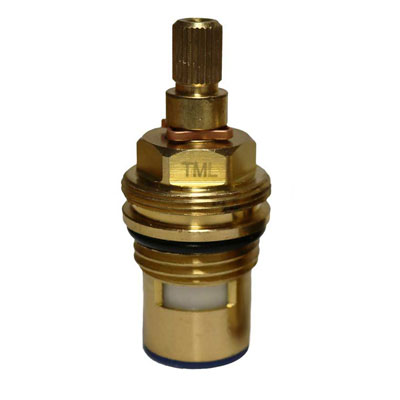

HargraveTA-ABAnticlockwise (to open) blue1/2" Cartridge x 28 x 54mm£10.99 Today

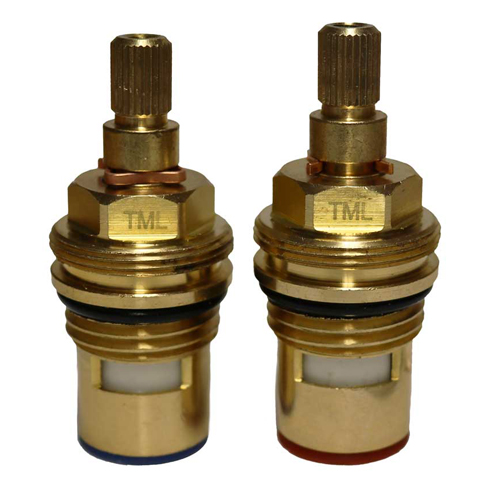

HargraveTA-PPair (1 x red, 1 x blue)1/2" Cartridge x 28 x 54mm£21.98 Today
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SK59C-SSingleChrome Handle Pair£27.00 Today
SK01-SSingleSet of Allan Keys£1.99 Today
SB26-SSingle26mm adaptor bush£7.50 Today
ST17-SSingle17mm spanner£6.50 Today
STBOX-SSingleCartridge Box Spanner 14mm 17mm£10.50 Today
ST0TTK-SSingleMonobloc Tap Tightening Set£10.50 Today
SS81-SSingleM4 stainess grub screw for Handle£3.00 Today
SR63C-SSingleAerator chrome£6.60 Today
SR00-SSingleAerator insert£3.99 Today


Tap Magician fully compatible spares for the Abode Hargrave Monobloc AT1150, AT1151 and AT1152
Our cartridge is compatible with ASCDV0003 or 3561R / 1427R.

If your tap is leaking/dripping out of the spout then it is time to replace the cartridges.

You may have a conversion bush fitted. Please contact us for more support if you are unsure.

When you remove your old valve from the tap the bush usually remains inside the tap block however sometimes it comes out together with the valve. If the valve is stuck inside the bush you can try to separate them. If you are unable to separate the valve from the bush then you will need to purchase the valve together with the bush. (Bush is our code SB26, original code 3886R)

The cartridge has 28 splines. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair"

If you require new handles / levers you can purchase a pair of compatible replacements

How to remove the handle: Use 2mm Allen key to undo grub screw underneath the lever. Pull lever off. You can then Unscrew the shroud.

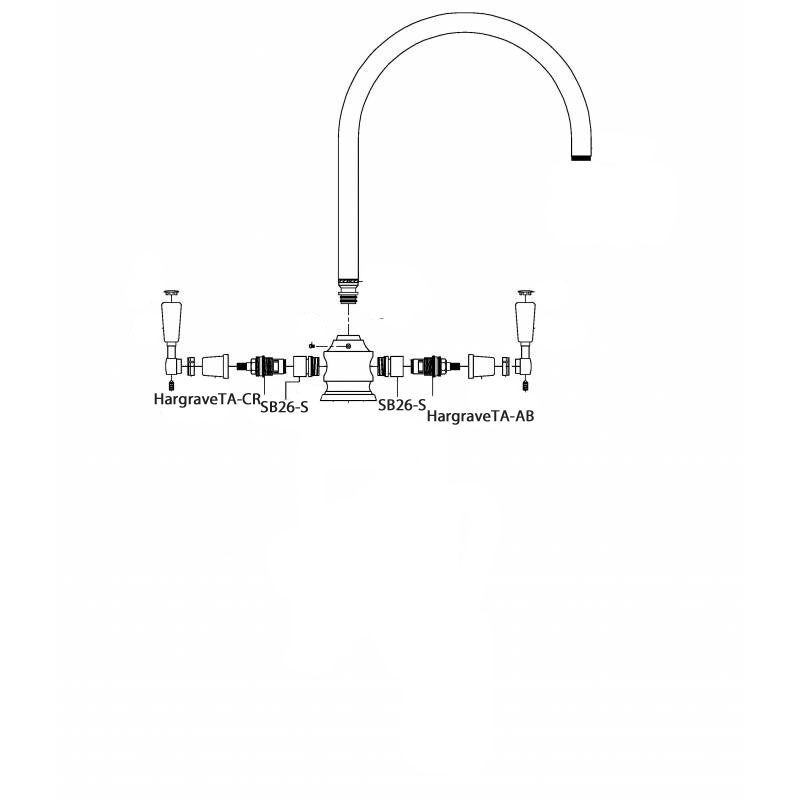

You can find the Hargrave tap diagram/instructions below.


Replacement aerator available

Frequently asked questions about your Abode Hargrave tap

How to remove my Abode Hargrave tap head/handle?

How To remove the handle: Use a 2mm Allen key to remove grub screw on the underside of the handle. The handle will then pull off and the shroud will unscrew.

How to replace your cartridge? Step 1. Turn water off. Step 2. Use 17mm spanner to undo cartridge anticlockwise. Some water will seep out, keep a cloth handy. Step 4. Fit new cartridge clockwise, tighten with spanner.



How to identify my abode tap? How to repair and fix my leaking abode tap? Spares available. Tap Glands. Tap Inserts. Any further questions contact our experienced technical team
