Compatible Spare Parts for the Carron Phoenix Bali Spiral

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time

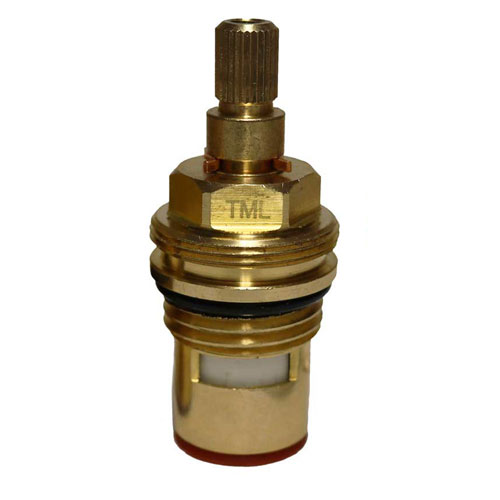

Bali-SpiralTA-CRClockwise (to open) red1/2" Cartridge x 28 x 54mm£9.99 Today

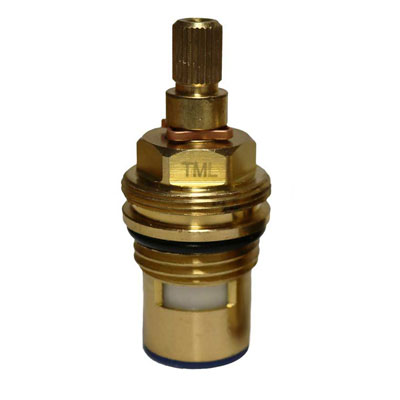

Bali-SpiralTA-ABAnticlockwise (to open) blue1/2" Cartridge x 28 x 54mm£9.99 Today

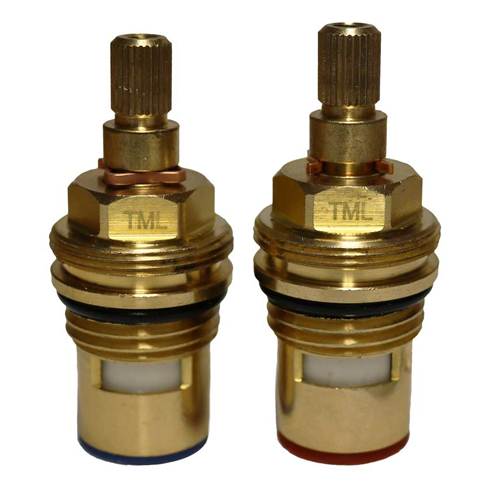

Bali-SpiralTA-PPair (1 x red, 1 x blue)1/2" Cartridge x 28 x 54mm£19.98 Today
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SA03-SSingleHandle Adaptor & Screw £3.50 Today
SK01-SSingleSet of Allan Keys£1.99 Today
SL05-SSingleLubricant£3.50 Today
ST17-SSingle17mm spanner£6.50 Today
STBOX-SSingleCartridge Removal Box Spanner 14 / 17mm£9.50 Today
ST0TTK-SSingleMonobloc Tap Tightening Spanner Set£10.50 Today

Tap Magician compatible spares / parts to repair the Carron Phoenix Bali Spiral kitchen tap.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 1427R-C / 1427R-H / 133.0438.154H / 133.0438.154C.
Later models have been fitted which 3547R valves.
The 1427R replacement cartridge is recommended by the tap manufacturer as a replacement for both models.

The cartridge has 28 splines. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair". Hot and cold valve replacements available.

How to remove the handle on my Bali Spiral tap?
You will first need to remove the handle retaining screw with a 2.5mm allen key. The handle will pull off.
Once the handle is off you will then need a crosshead screwdriver to remove the brass screw holding the brass handle insert onto the valve.
Now undo the valve cover retaining screw with a 2.5mm allen key and then unscrew the valve cover.

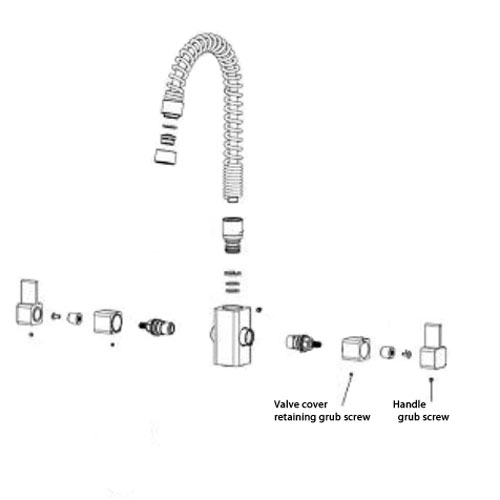

You can find the Bali Spiral tap diagram / instructions below.
Frequently asked questions about your Carron Phoenix Bali Spiral tap.

How to identify my Carron Phoenix tap? How to repair my leaking Carron Phoenix Bali Spiral tap? Spares available for Carron Phoenix Bali Spiral.
Any further questions contact our experienced technical team.
