CARRON PHOENIX OPUS CERAMIC LEVER TAP SPARES
Tap Magician compatible spares / parts to repair the Carron Phoenix Opus Ceramic Levers kitchen tap.

For guidance / instructions of how to replace a tap valve step by step please click here

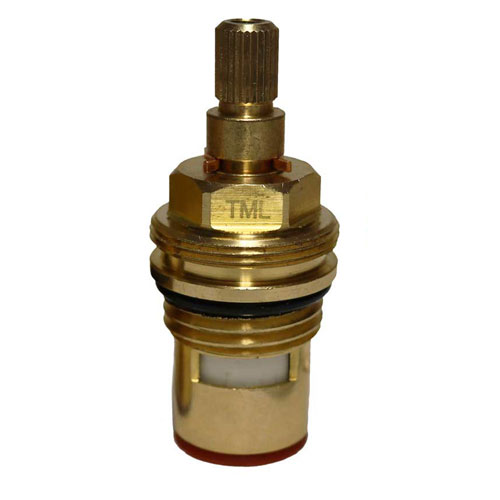

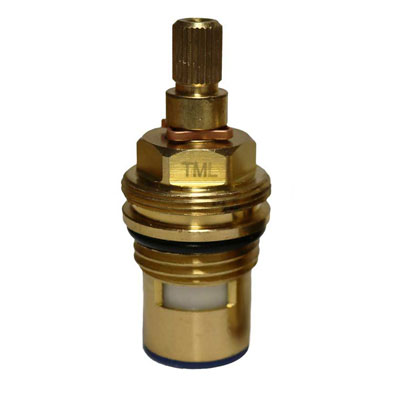

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 133.0438.152C / 133.0438.154H.
Hot and cold valve replacements available.

The cartridge has 28 splines. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.

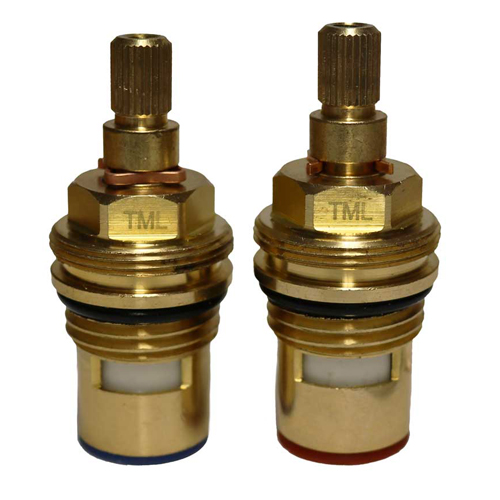

If you require both then you can select "Pair"

We now have compatible lever handles available (in plain chrome)

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 1239R.

How to remove the handle on my Opus Ceramic lever tap?
Remove the handle retaining screw on the underside of the handle by using a 2mm allen key (SK01-S Allen key set).
Once removed pull the handle away from the tap body and unscrew the handle cover / shroud unscrewing anticlockwise.

How to replacing the O Rings on my Opus Ceramic lever tap?
Unscrew locking collar at the base of the spout. Once unscrewed the spout will pull up out of the tap body.
Replace the O rings with our SK22-S applying silicone grease to the new o'rings before refitting.

We have a compatible spout available - our spout is slightly different design but is fully compatible.

If you need new replacement handles then you can buy our tap reviver kit which comes complete with new cartridges, new handles and new shrouds.

If you require a new antisplasher / aerator this is our part SR24C-S.
Original codes known by 133.0365.660.

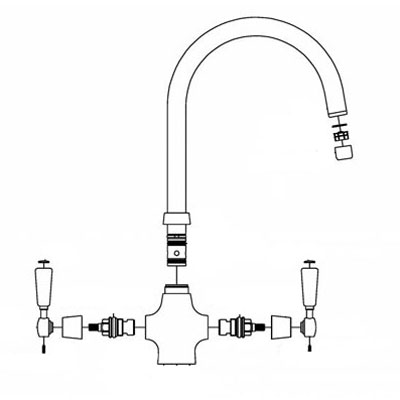

You can find the Opus tap diagram/instructions below.
