Watch our video below for guidance / how to remove your handles and change your Quarter turn ceramic valves and Spout O Rings



Tap Magician replacement spare parts to repair the Franke Eiger U Spout Kitchen mixer taps.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
The Franke cartridge may be known by the following spare part references; s1022 , SP3561, 3561R, 1427R, 133.0438.152, 133.0438.154, 133.0069.364, 133.0069.365 , 133.0194.088, 133.0194.089
When you remove your old valve from the tap the bush usually remains inside the tap block however sometimes it comes out together with the valve. If the valve is stuck inside the bush you can try to separate them. If you are unable to separate the valve from the bush then you will need to purchase the valve together with the bush.
The Brass bush is known by code 3868R

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by SP2300, 2300R.

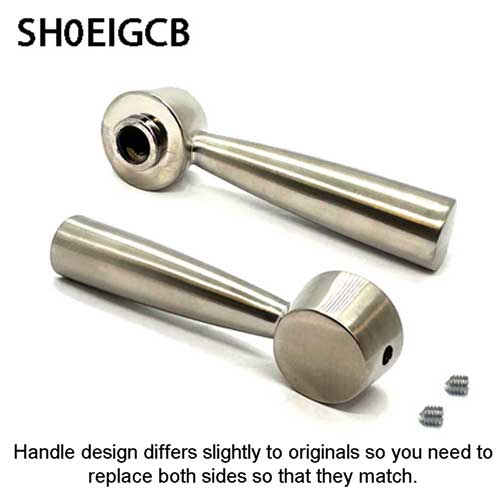

If you need a replacement lever handle then we have this available in chrome. This comes complete with a new grub screw. This is compatible with part code 3012R / SP3012 / 133.0068.885 / 133.0068.883. Please note our handle is plain (not stamped H or C) so is suitable for hot and cold sides.

How to remove the Franke Eiger handle/Lever and replace the cartridge:
1. Use 2mm allen key to undo screw holding handle on.
2. Pull lever off.
3. Unscrew cover / shroud (it will unscrew anticlockwise).
4. Use a 17mm or adjustable spanner to remove the cartridge. (it will unscrew anticlockwise)
5. Screw new cartridge in clockwise.
You can find the Eiger U Spout tap diagram/instructions below.
