Tap Magician replacement spare parts to repair the Franke Gloriana Bridge kitchen tap 115.0712.045

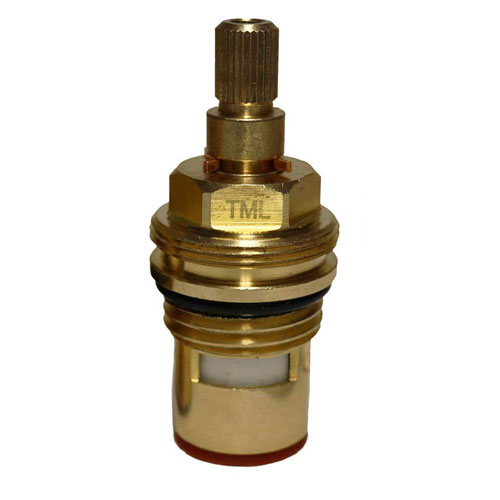

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
The Franke cartridge may be known by the following spare part references; s1022 , SP3561, 3561R-H, 3561R-C, 1427R, 133.0438.152, 133.0438.154, 133.0069.364, 133.0069.365 , 133.0194.088, 133.0194.089
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by SP1239 1239R 133.0069.151.
You can find the Gloriana tap diagram/instructions below.
How to remove the handle and replace the cartridge on the Gloriana tap?
First turn the water off to the tap. You will need to remove the handle retaining screw by using a 2.5mm allen key. You can then remove the handle and unscrew the valve cover by unscrewing it anticlockwise. You can then use an adjustable spanner to unscrew the existing valve and fit the replacement parts.
How to replacing the o rings on the Gloriana tap?
To replace the o rings you’ll need to remove the spout collar by unscrewing it anticlockwise. You can then lift the spout up and replace the o rings at the base with the replacement parts.
Watch our How to video for guidance on removing tap handles and replacing tap cartridges.
