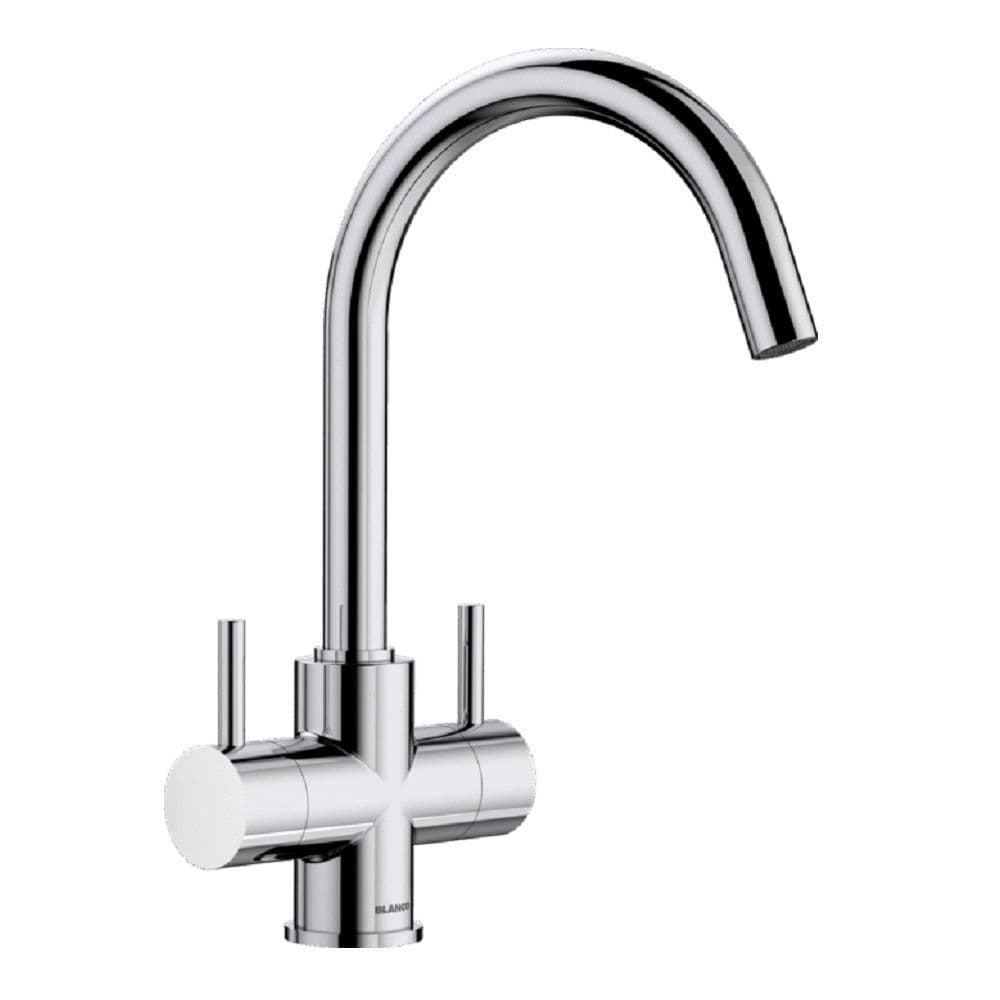

Tap Magician fully compatible spares to fit the Blanco Camia Chrome BM3160CH Kitchen Lever Mixer Tap.

For guidance / instructions of how to replace a tap valve step by step please click here

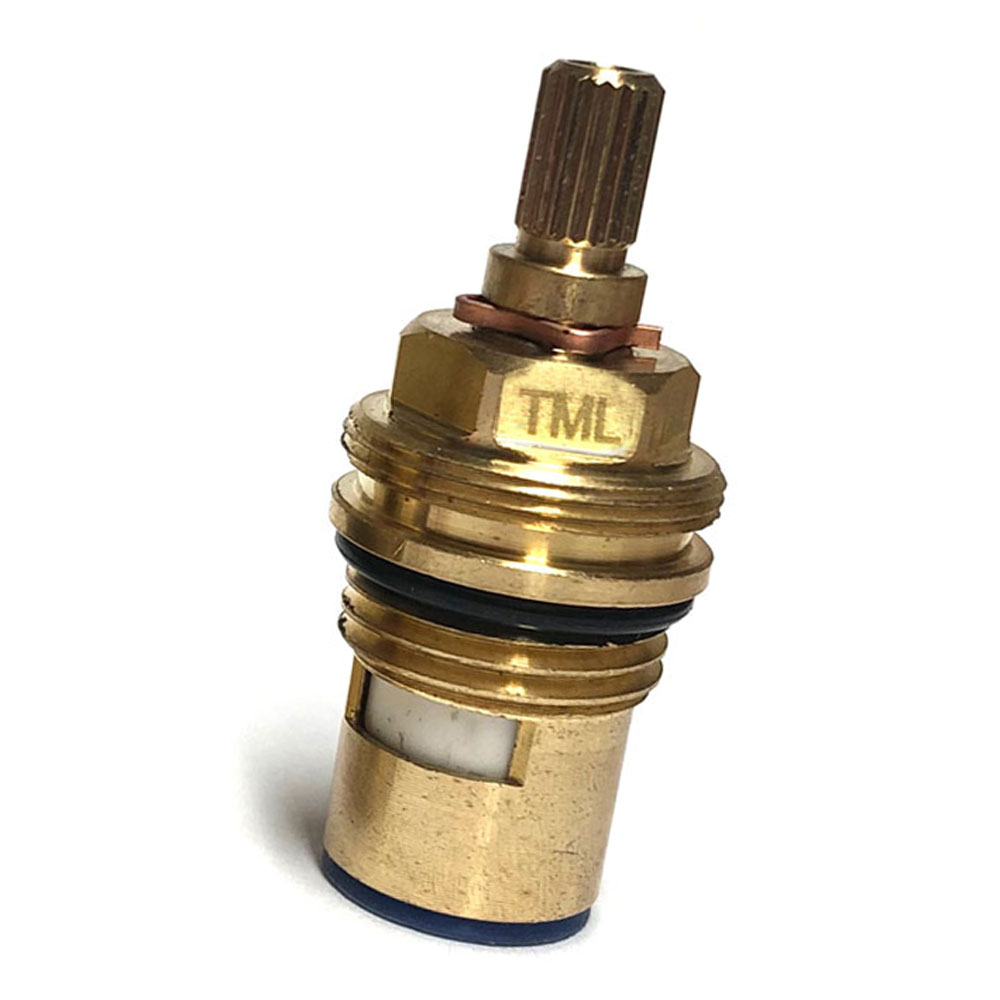

If your Blanco Camia tap is dripping out of the spout then you need to replace the ceramic Quarter turn cartridges.
The original spare part code is 123786 / 123785 / SAP 525335, SAP 525333, SAP 525334. May have code stamped on cartridge 019003304 / FDL BF5400 / 119002604 FDL

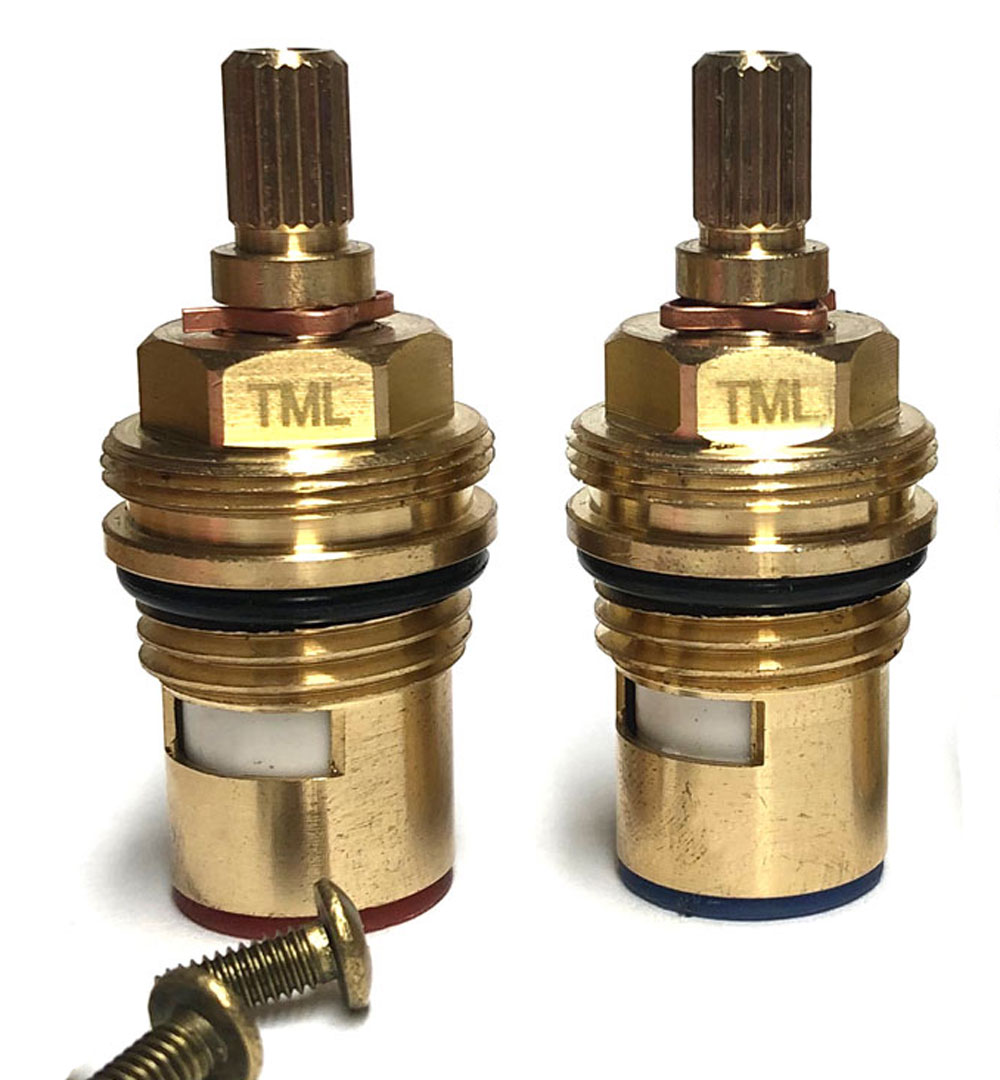

They are available singly (hot handle Opens Clockwise / cold handle opens Anticlockwise) or as a pair.

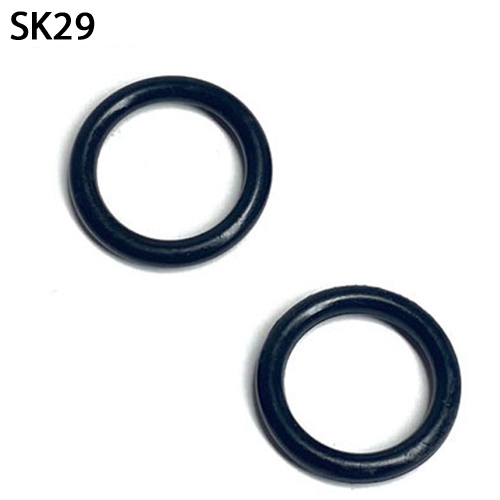

If your tap is leaking around the base of the spout (where the spout joins the tap body) then you need to replace the Spout seals/ O'Rings.

How to remove the handle on the Blanco Camia and replace the cartridge?
1. Remove chrome indice/screw covering cap from underside of handle.
2. Use 2.5mm allen key to undo grub screw.
3. Pull Handle off.
4. Use 17mm or adjustable spanner to undo cartridge anticlockwise.
5. Remove brass Spline adaptor (Handle adaptor) from top of cartridge. You will need a 2mm allen key to undo the grub screw and a crosshead screwdriver to undo the screw in the top. You will need to use this on the new cartridge from us.
6. Refit Cartridge with spline adaptor in to the tap screwing it in clockwise. 7. Refit handle.

How to remove the spout on the Blanco Camia?
1. Use Crosshead screwdriver to undo spout retaining screw.
2. Pull spout up and away from tap body.
3. Replace o rings, original are clear, ours are black.
4. Apply silicone grease to the new o rings.
5, Push spout back firmly and tighten screw.

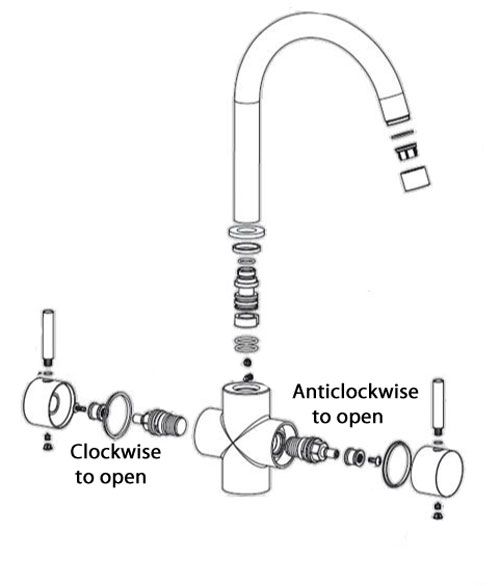

You can find the Camia tap / instruction diagram below.
