HERITAGE HEMSBY BASIN TAP SPARES

Replacement spare parts compatible with the for the Heritage Hemsby 3 Taphole Basin Mixer Chrome THPC06.

For guidance / instructions of how to replace a tap valve step by step please click here.

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by spare part code 210V00015NT-FEU09 1/2 CD Valves.
Hot and cold available.

Cartridge uses a white plastic handle carrier / spline adaptor known by 20MR70139NT, this can be re used as long as it is not damaged.

You will need clockwise for the cold side and anticlockwise for the hot side.
Cartridges have 20 teeth on spline and use a handle spline adaptor.

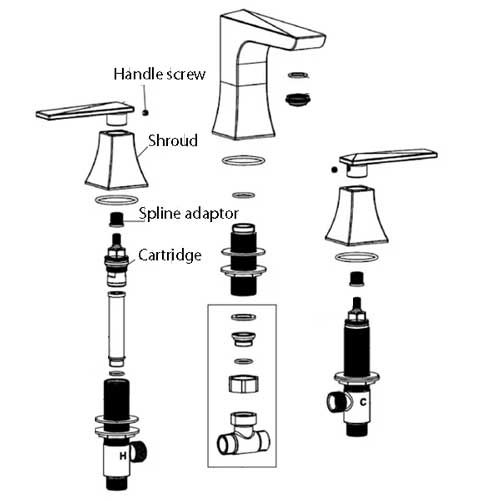

How do I remove the handle on the Heritage Hemsby basin taps?
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the handle retaining screw, using appropriate size Allen key (SK01-S).
Step 2. Pull handle away from tap body.
Step 3. Unscrew shroud from tap body anticlockwise.
Step 4. Use a spanner to remove the cartridge from the tap body.
