PEGLER ARBON MONOBLOC TAP SPARES

Tap Magician compatible spares / parts to repair the Francis Pegler Arbon Monobloc Kitchen Sink Mixer Tap CD 452101.
Dualflow tubular spout CD551.

Watch our video below for guidance / how to remove your handles and change your Quarter turn ceramic cartridge

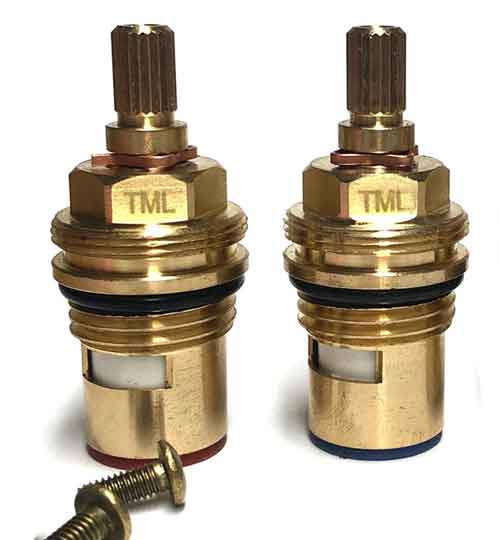

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

Original cartridges known by spare part codes 814042 Cold, 814043 Hot and 814041 Pair.
Replacement hot and cold valves available.

Cartridge has 20 teeth on spline. You will require our Anticlockwise open cartridge for the cold and clockwise open for the hot side.

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.

How to remove the handle on the Pegler Arbon Monobloc?
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the end screw cap cover
Step 2. Use a crosshead screwdriver to undo the handle retaining screw screw
Step 3. Pull off the lever handle
Step 4. Use 17mm or adjustable spanner to undo cartridge anticlockwise
Step 5.Screw in the new cartridge clockwise
Step 6. Tighten the cartridge enough to seal, but avoid over-tightening
