FRANCIS PEGLER RUNE TAP SPARES
Tap Magician compatible spares / parts to repair the Francis Pegler Rune Monobloc Single Flow Sink Mixer.

For guidance / instructions of how to replace a tap valve step by step please click here

Compatible with models 4P1063 / 4P1061 / 4P1061 / 4P1070

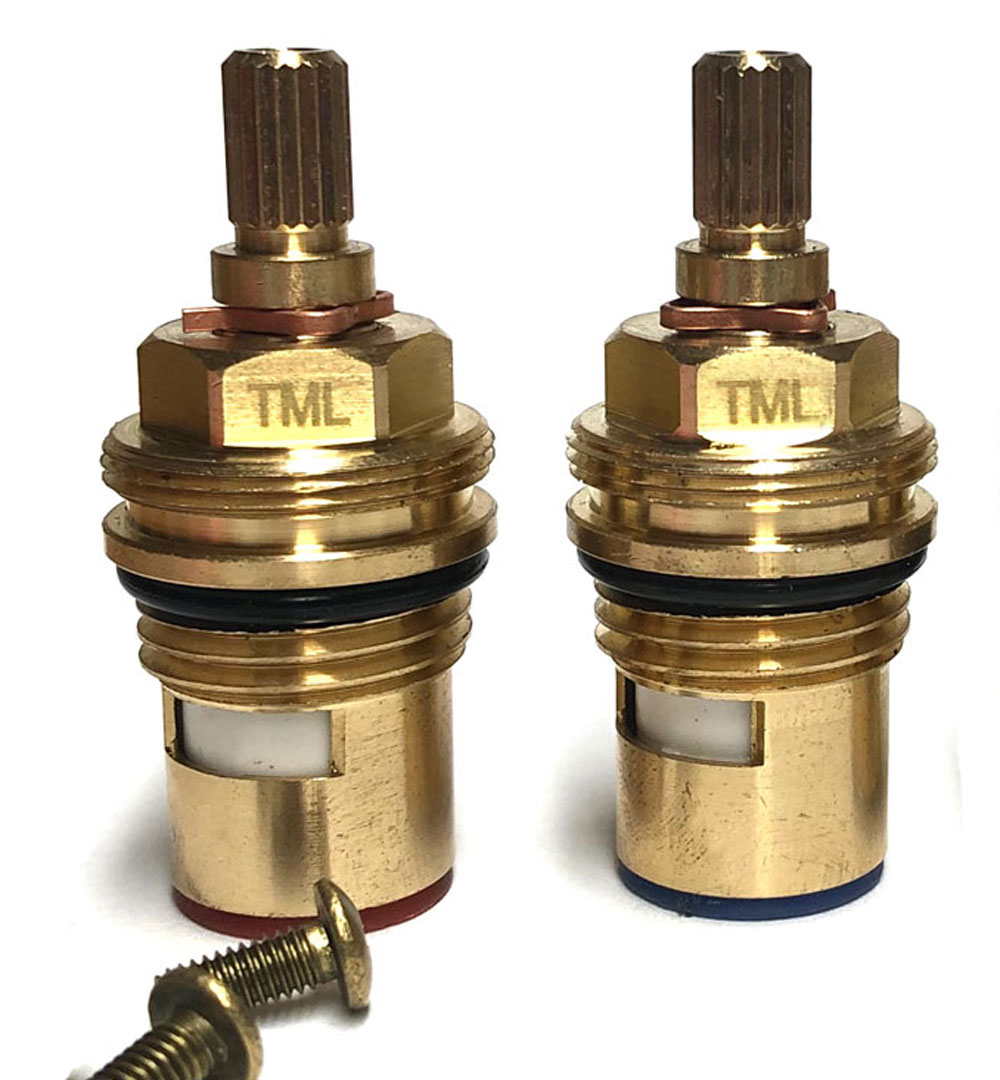

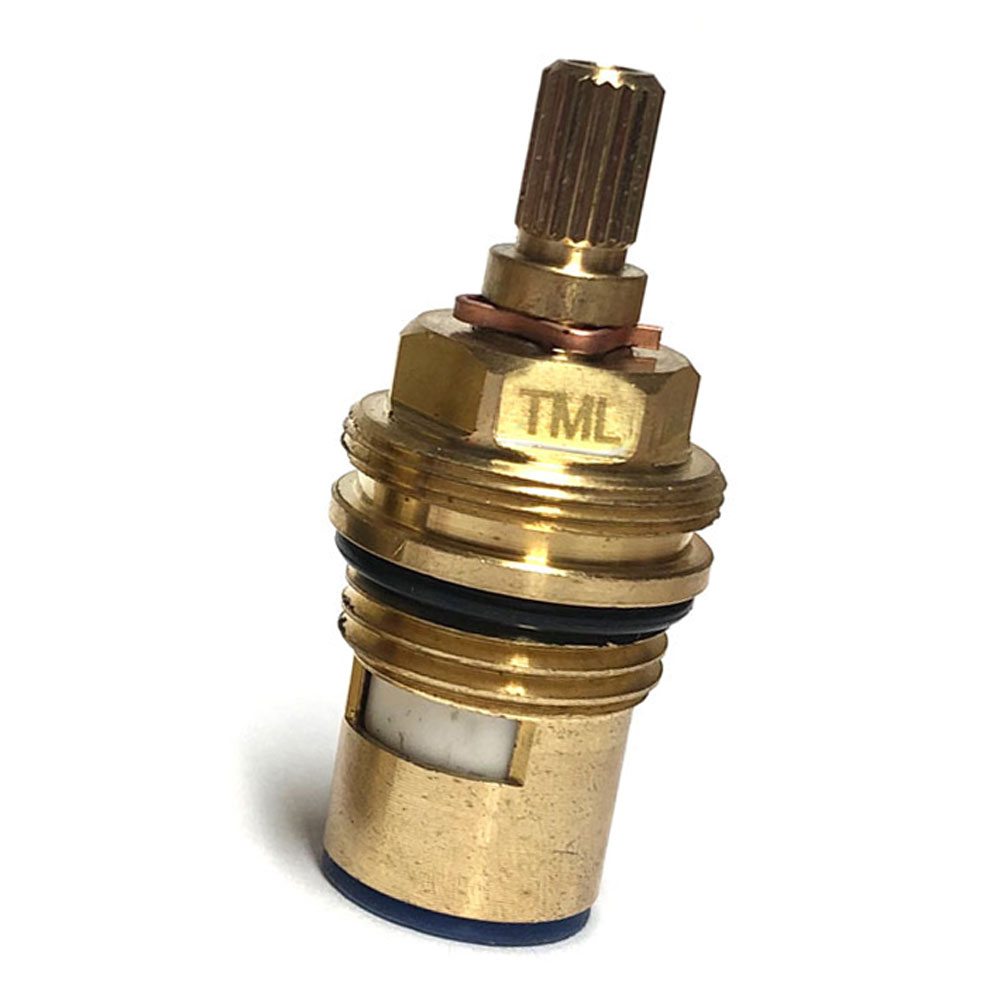

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Hot and cold valves available.

Original cartridges codes 814042 Cold, 814043 Hot and 814041 Pair / 854308 / 854034 / HKH7 / HKC75 / 5013866075483/ 5013866064326. Cartridge has 20 teeth on spline.
You will require our Anticlockwise open cartridge for the cold and clockwise open for the hot side.

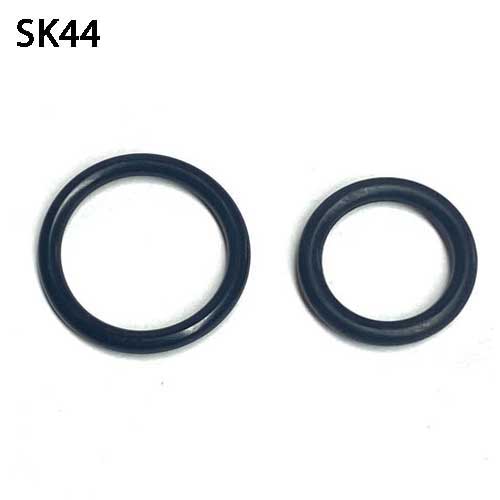

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.

If you require replacement handles/levers we have a compatible set available in chrome/ ceramic

Frequently asked questions about the Pegler Rune tap.

How To remove the handle on the Pegler Rune and replace the cartridge?
First you will need to isolate the water.
1. Remove end cap and undo screw with crosshead screwdriver.
2. Pull Lever off.
3. Unscrew cartridge cover / shroud (anticlockwise).

4. Use 17mm or STBXOX-S to undo the cartridge (it will unscrew anticlockwise).
5. Fit new cartridge and replace the tap handle.

How do I replace the spout o rings?
1. Use 2.5mm allen key (SK01-S) to undo grub screw at the back of the spout. 2. Pull spout up and away from tap body.
3. Remove old o rings.
4. Apply silicone grease to new o rings
5. Push spout firmly back in to tap body and tighten grub screw.

Watch our how to video for further general guidance on removing tap handles.



How to identify my Pegler tap? How to repair my leaking Pegler Rune tap?
Spares available for Pegler Rune.

If you need any help of advice please contact our technical advisors.
