ABODE ASTBURY SPARES

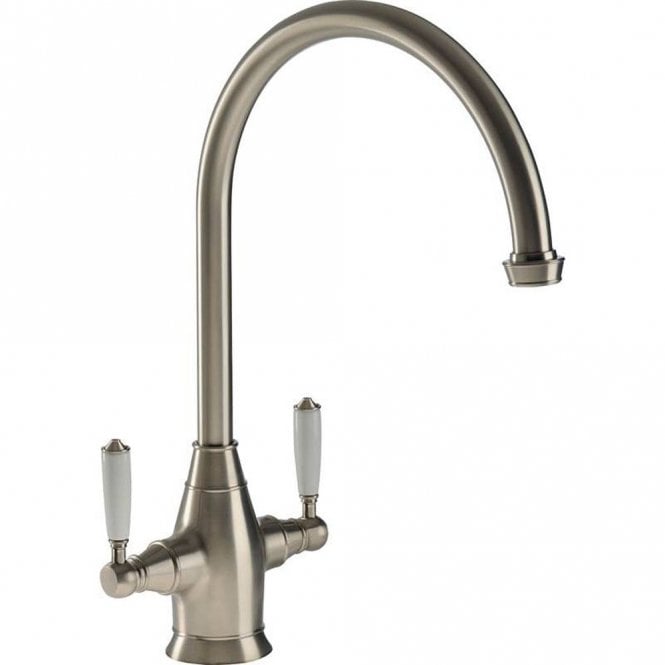

Tap Magician compatible spare parts to repair the Abode Astbury Monobloc Kitchen Mixer Tap.
Compatible with model AT3000, AT3001, AT3002, AT3003.

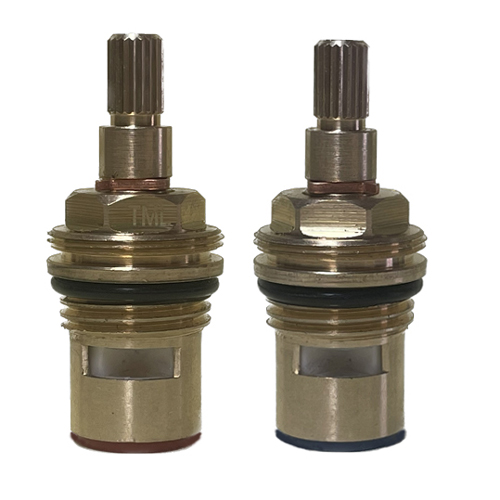

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

Hot and cold valve replacements available.

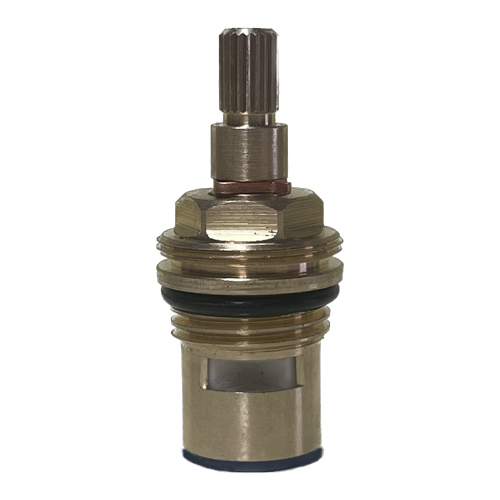

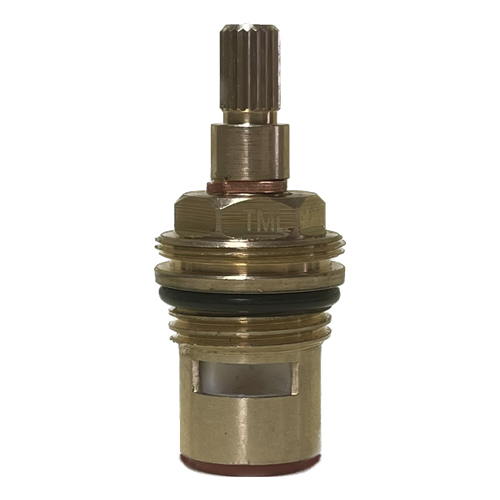

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

How to remove the handle on the Abode Astbury tap?
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the handle retaining screw, using appropriate size Allen key (SK01-S).
Step 2. Pull the handle away from the tap body.
Step 3. Unscrew decorative shroud from the tap body anticlockwise.
Step 4. Use an adjustable spanner to undo the cartridge locking nut.
Step 5. Remove old cartridge from the tap body.
Step 6. Fit your new cartridge in place and reverse the steps to refit the handle.

Watch our help video below for general guidance on removing handles and replacing your Quarter turn ceramic valves.
