BATHSTORE METRO BATH TAP SPARES
Tap Magician ceramic cartridges compatible with the Bathstore Metro bath shower mixer bath taps ML422DC and ML322DC.
PLEASE NOTE this cartridge is not compatible wit the Metro shower bar. Please contact us for more support for this model.
For guidance / instructions of how to replace a tap valve step by step please
click here
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

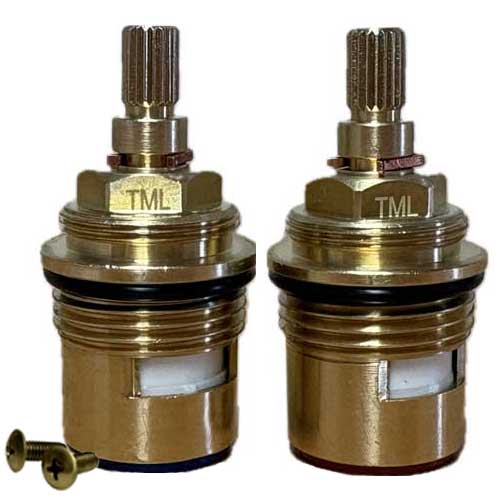

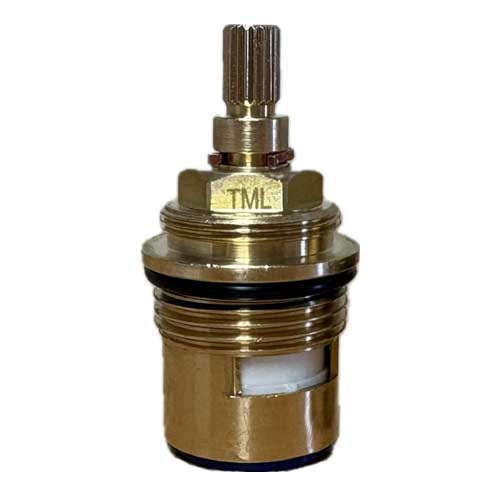

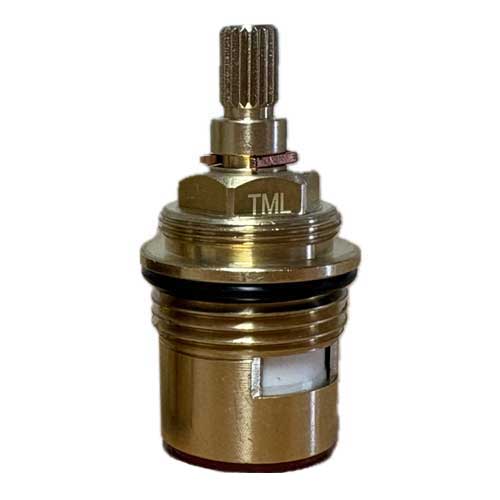

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".
Original cartridge may have coding 817010719 stamped on it.
May also be known by codes CG531FB1 CG531FA1 or X1A018N-H / C.

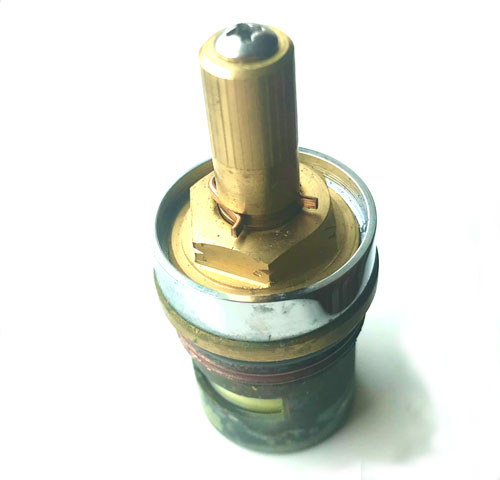

This version utilises a brass spline adaptor as shown in the image below.
You will need to remove this brass sleeve from the old cartridge and re use this on the new.
You will also need to remove the chrome collar and fit this to the new cartridge.
How do I remove the Bathstore Metro tap handle?
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the cover cap located at the back of the handle.
Step 2. Remove the handle retaining screw, using appropriate size Allen key (SK01-S).
Step 3. Once the screw is removed you can lift the handle away from the tap body.
The Metro bath tap cartridge will remove from the tap body with a chrome retaining nut and handle adaptor on the splines.
These will need to be removed from the old cartridge, and reused on the replacement.
See the tap handle diagram below.
Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
