BRISTAN CRUZAR BATH MIXER TAP SPARES
Replacement spare parts compatible with the for the Bristan Cruzar range of Bath taps.
Fits Cruzar Bath Filler CRU BF C, CRU BF BB, CRU BF BLK, Bath Shower Mixer CRU BSM C, CRU BSM BB, CRU BSM BLK.

For guidance / instructions of how to replace a tap valve step by step please click here.

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

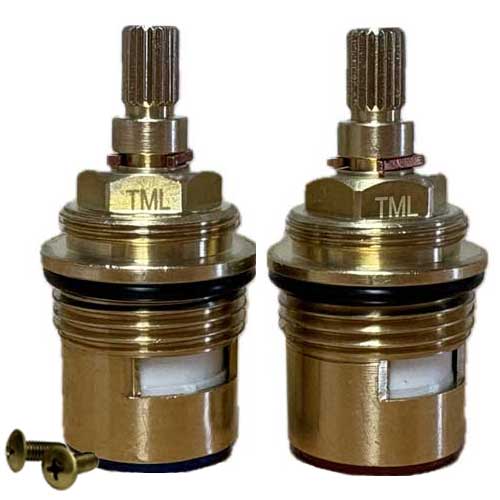

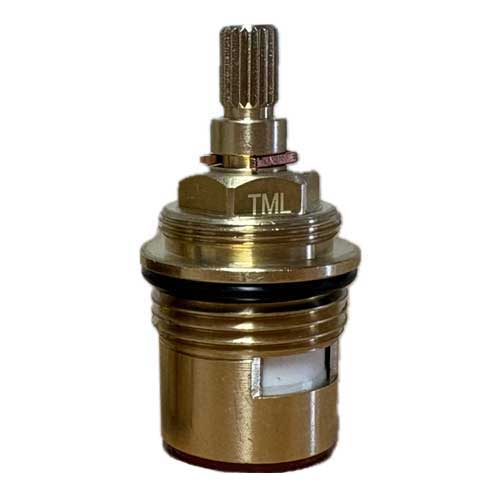

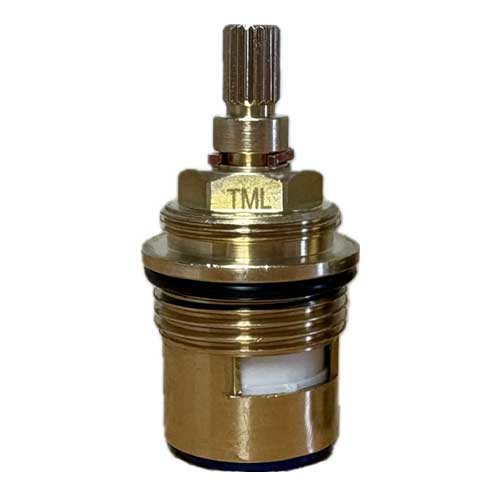

Original spare part codes known by Bristan Spare part code 19MC090R58.04 3/4 CD Valves. Both Hot and Cold available.

How to remove the tap handle lever on the Bristan Cruzar Bath tap and replace the cartridge?
Before removing the handle to replace the cartridge you will need to isolate the water.

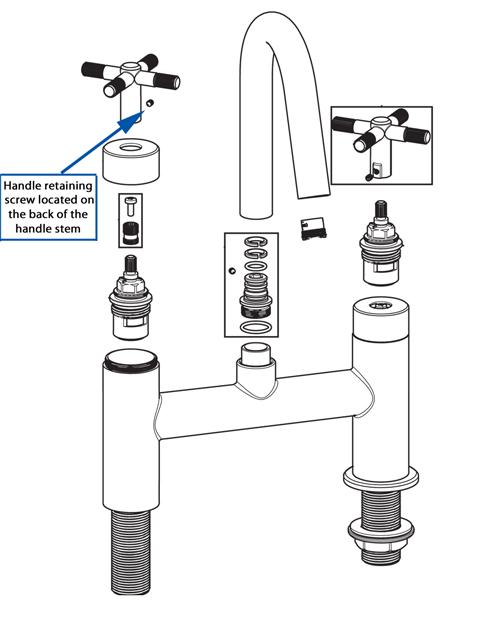

Step 1. Use Allen key to undo the handle retaining screw located on the back of the tap handle. See diagram below
Step 2. Pull the tap handle up away from the tap body.
Step 3. Unscrew shroud anticlockwise and remove from the tap.
Step 4. Use a crosshead screw driver to remove the spline adaptor. You will need to reuse this on the replacement cartridge.
Step 5. Use 17mm or adjustable spanner to remove cartridge (anti-clockwise)
Wipe the tap seat clean and repeat the steps above in reverse.



Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
