Tap Magician fully compatible spares to fit the Blanco Cleo BM6100 Kitchen mixer tap.

This is not compatible with the other Cleo models. If you are in doubt of which version you have please send us a photograph with the handle removed

For guidance / instructions of how to replace a tap valve step by step please click here

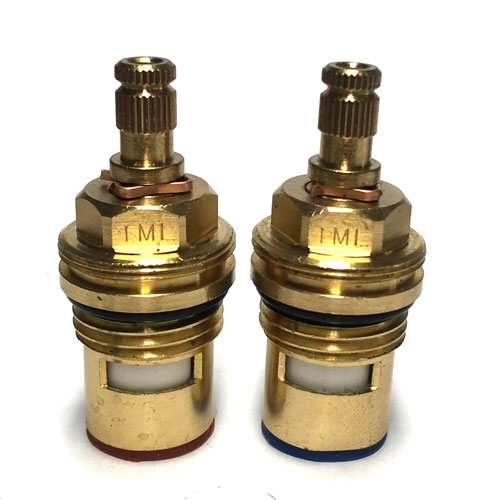

If your Blanco Cleo BM600 tap is dripping out of the spout then you need to replace the ceramic Quarter turn cartridges.
The original spare part code is known by 002544 02545-1. This cartridge has 28 teeth on the spline.

Your cartridge may come out with the adaptor bush attached. If it does then you need to separate them. We do not supply the adaptor bush.

They are available singly (hot handle Opens Clockwise / cold handle opens Anticlockwise) or as a pair.

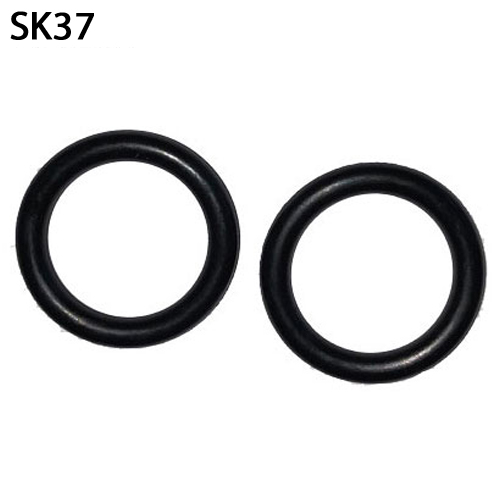

If your tap is leaking around the base of the spout (where the spout joins the tap body) then you need to replace the Spout seals/ O'Rings.
The original spare part code for the spout repair kit is 001631.

How to remove the handle on the Blanco Cleo BM6100 and replace the cartridge:
1. Unscrew the vertical lever. This will reveal a screw.
2. Use 2.5mm allen key to undo screw.
3. Handle will then pull off.
4. Use 17mm or adjustable spanner to undo cartridge anticlockwise.

5. Replace new cartridge which will screw in clockwise. Replace handle.

How to remove the spout and replace the o rings
1. Use flat head screwdriver to undo spout retaining screw.
2. Pull spout up and away from tap body.
3. Remove o rings.
4. Fit new o rings.
5. Apply silicone grease to new o rings

You can find the Cleo BM6100 tap / instruction diagram below.
