BLANCO EYE BM5300 TAP SPARES
Watch our video below for guidance / how to change your Quarter turn ceramic valves and Spout O Rings.


Replacement spares to fit the Blanco EYE BM5300CH / BM5300 Kitchen Mixer tap.

If your tap is leaking/dripping out of the end of the spout then you need to replace the tap cartridges.

Our parts are fully compatible with original coding 002545 / 002544.

Please be aware that your cartridge may come out stuck inside the brass bush.

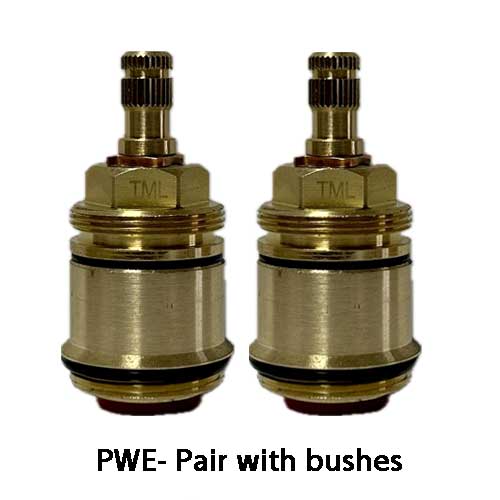

Replacement bush available (SB24E).

If your tap is leaking where the spout joins the tap body / tap block, then you need to replace the O Rings inside the swivel spout.
We supply the 2 compatible O'Rings for this but cannot supply the plastic washer inside the spout.

Replacement screws available: SS04-S (for handle) and SS14-S (for Spout).

If you require a new antisplasher / aerator this is our part SR22X-S.

How to remove handle:
Use 2.5mm Allen key to undo grub screw under handle. Pull lever off.
You may need to use some force as corrosion can make them difficult to remove.
Once removed the valve cover / shroud unscrews anticlockwise.

How to replace the spout o-rings:
Use 2.5mm Allen key to undo grub screw at the back of the spout then pull the spout away from body.

How can I remove the adaptor bush which has come out attached to my cartridge?
You can watch our video below if you need help with separating your adaptor bush.

You can find the Eye tap / instruction diagram below.
